Product Description:

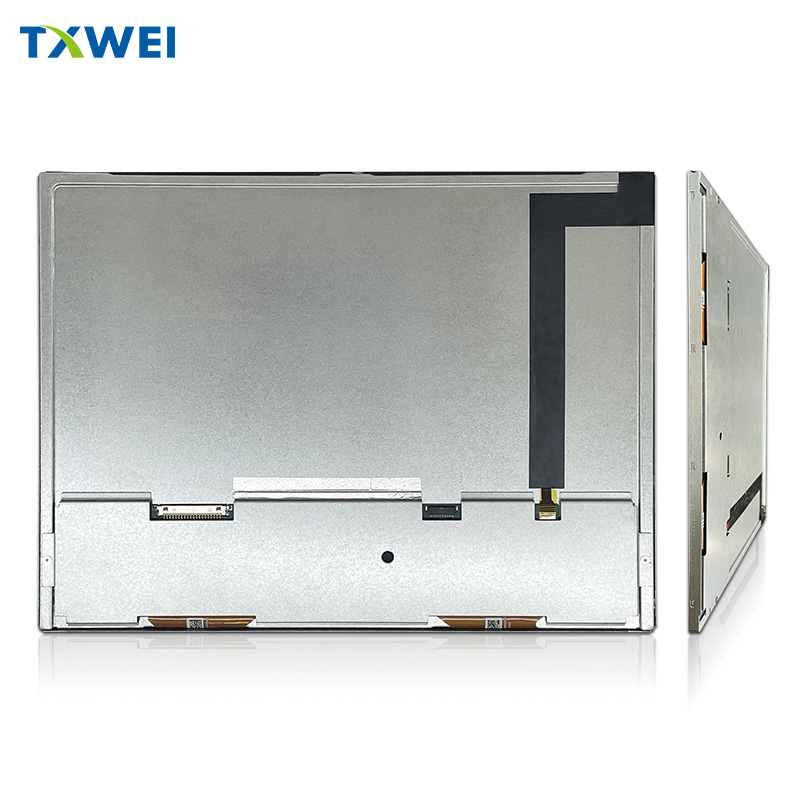

- TXW121007N0 is a 12.1-inch 4:3 ratio full-color TFT LCD display screen with a resolution of 1024 * 768, IPS full view high-definition display effect, brightness of 500nits, and wide temperature display screen.
- The TFT LCD Screen display module is designed to provide high-quality images with excellent color reproduction. The display module uses an LVDS interface, which ensures fast data transfer rates and high transmission speeds. The LVDS interface is a high-speed data transfer protocol that is widely used in modern display technology.
- This TFT LCD Screen display module comes with a backlight current of 180mA, which provides bright and vibrant images. The backlight current is an important factor in determining the brightness of a display. A higher backlight current means a brighter display, which is essential for outdoor applications and environments with high ambient light.
- The TXW121007N0 model is perfect for a wide range of applications, including medical equipment, industrial control systems, and many more. The display module is designed to be easy to integrate into your existing system, with a compact and lightweight design that ensures easy installation and maintenance.
- The TFT LCD Screen display module is built to last, with a rugged design that can withstand harsh environments. The display module is designed to be durable, with a long lifespan that ensures reliable operation for many years to come.
- In summary, the TFT LCD Screen display module is an excellent choice for applications that require high-quality visuals and reliable operation. The display module is designed to provide crystal-clear images with excellent color reproduction, making it an ideal choice for medical equipment, industrial control systems, and many more.
Features:
- Product Name: TFT LCD Screen
- Operating Temperature: -30+80
- Brightness: 500cd/m²
- Storage Temperature: -30+80
- Number of Pixels: 1024*768
- Pixel Arrangement: RGB Stripe
- Type: LCD TFT Display Panel
- Module: TFT LCD Display Module
- Screen: TFT LCD Screen
Technical Parameters:
| Model | TXW121007N0 |
| Operating Temperature | -30°C to +80°C |
| LCM Interface | LVDS Interface |
| Number of Pixels | 1024x768 |
| Brightness | 500cd/m² |
| Lcm Pin N Count | 20 Pin |
| Pixel Pitch (WxH) | 260.5x204x8.51mm |
| Size | 12.1 Inch |
| Pixel Arrangement | RGB Stripe |
| Backlight Current | 180mA |
Support and Services:
Our TFT LCD Screen product comes with a comprehensive technical support and services package to ensure the best possible user experience. Our team of experts is available to assist with any technical issues or queries that may arise during installation or operation. Our services include troubleshooting, repair, and replacement of components. We also offer regular software updates to ensure that your TFT LCD Screen product is always up-to-date with the latest features and functionality. For more information on our technical support and services, please contact us.
Applications:
- This product is widely used in fields such as car displays, industrial security, medical equipment displays, military equipment displays, outdoor highlight displays, and ship navigation.
- Consumer Electronics: Our TFT LCD panel is widely used in smartphones, tablets, laptops, and other handheld devices, providing a high-resolution display for a better viewing experience.
- Automotive Industry: Our TFT touch display is perfect for infotainment systems, dashboard displays, and rear-seat entertainment systems, providing a clear and intuitive interface for drivers and passengers.
- Industrial Applications: Our TFT LCD Module is also suitable for industrial applications such as control panels, measurement devices, and industrial computers, providing a reliable and durable display solution for harsh environments.
- Medical Devices: Our TFT display is widely used in medical devices, such as patient monitoring systems, ultrasound machines, and medical imaging devices, providing accurate and high-resolution images for medical professionals.
- With its wide range of applications, our TFT LCD Module is the perfect display solution for various industries and scenarios. Its advanced technology and high-quality performance make it a top choice for electronic devices.
